Sukhoi Su-35
General characteristics
Length: 21.9 m
Wingspan: 15.3 m
Height: 6.09 m
Wing area: 62.0 m²
weight: 17,500 kg
special features
2D asymmetric thrust vectoring
Speedbrake flaps
can track up to 30 targets and engage 8
uses carbon fibre and aluminium-lithium in the airframe for a lighter structure
uses leading edge flaps
Armament
1× 30 mm GSh-30 cannon with 150 rounds
12× wing and fuselage stations for up to 8,000 kg (17,630 lb) of ordnance, including:
- Air-to-Air Missiles
- Air-to-Surface Missiles
- Bombs
General characteristics
- Crew: 1
- Length: 21.9 m
- Wingspan: 15.3 m
- Height: 5.90 m
- Wing area: 62.0 m²
- Empty weight: 17,500 kg
- Loaded weight: 25,300 kg
- Max takeoff weight: 34,500 kg

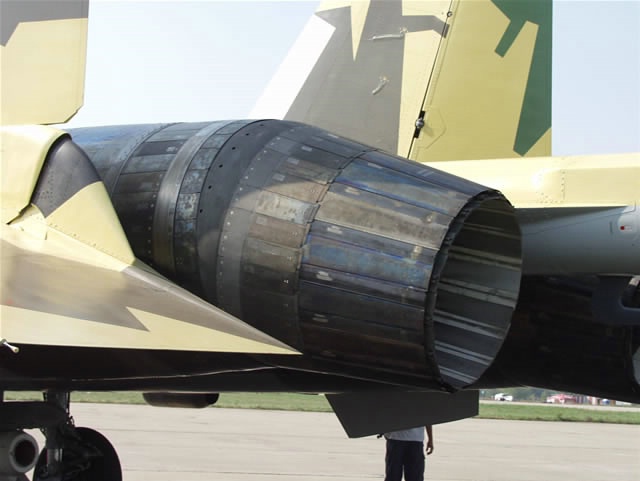

- Powerplant: 2× Saturn 117S with TVC nozzles turbofans
- Dry thrust: 8,800 kgf each
- Thrust with afterburner: 14,500 kgf each
Performance
|
Max Level Speed |
at altitude: 2,500 km/h at 32,780 ft (10,000 m), Mach 2.3
at sea level: 1,435 km/h, Mach 1.18
cruise speed:1,400 km/h at 32,780 ft (10,000 m) |
| Initial Climb Rate |
13,800/ min |
| Service Ceiling |
18,000 m |
| Range |
typical:3,200 km
ferry: 6,500 km |
| g-Limits |
+10 |
